PV Mounting elements
Mounting Rail 40 x 40 x 4400 mm
Manufacturer: iONTEC
INDEX: 39666-4.4

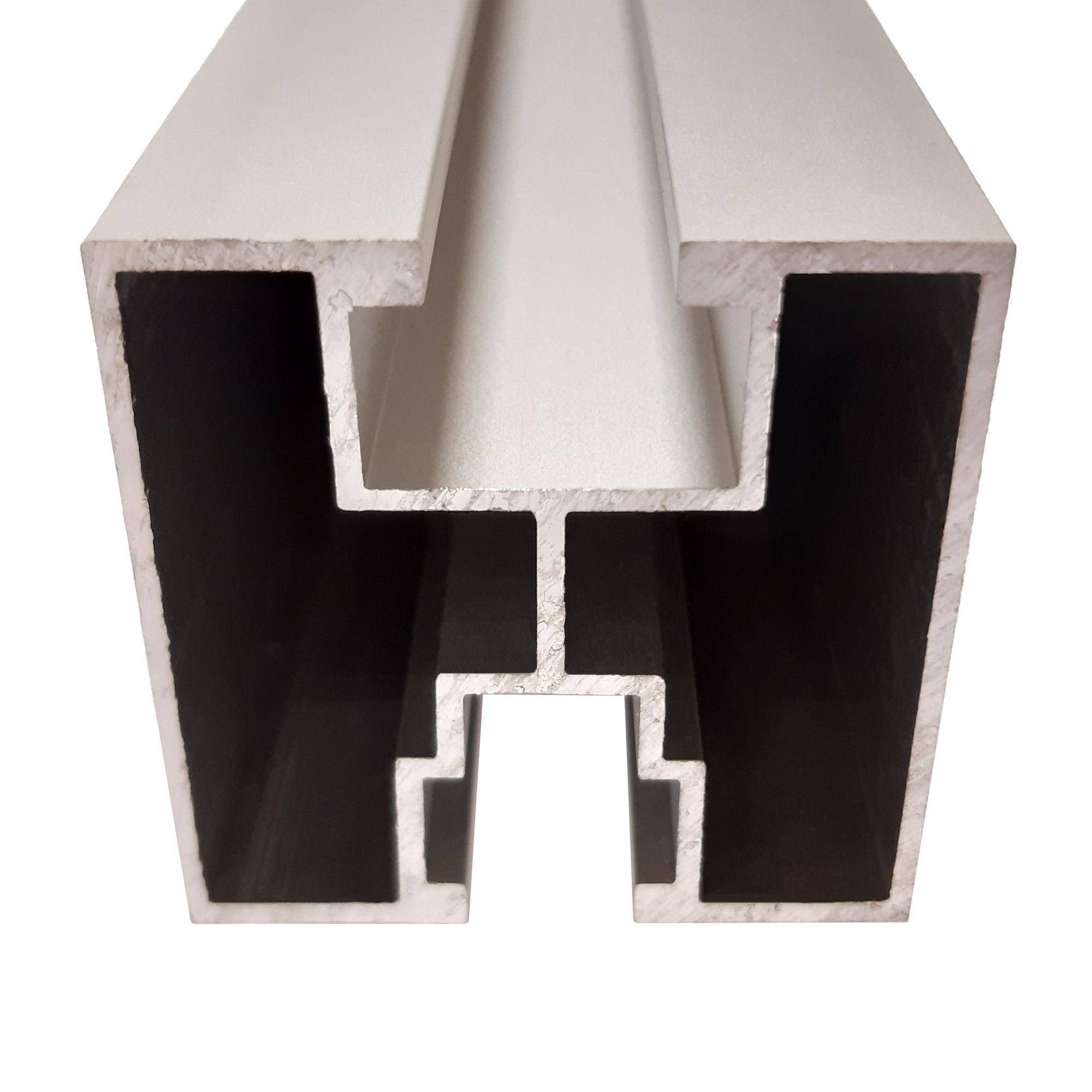

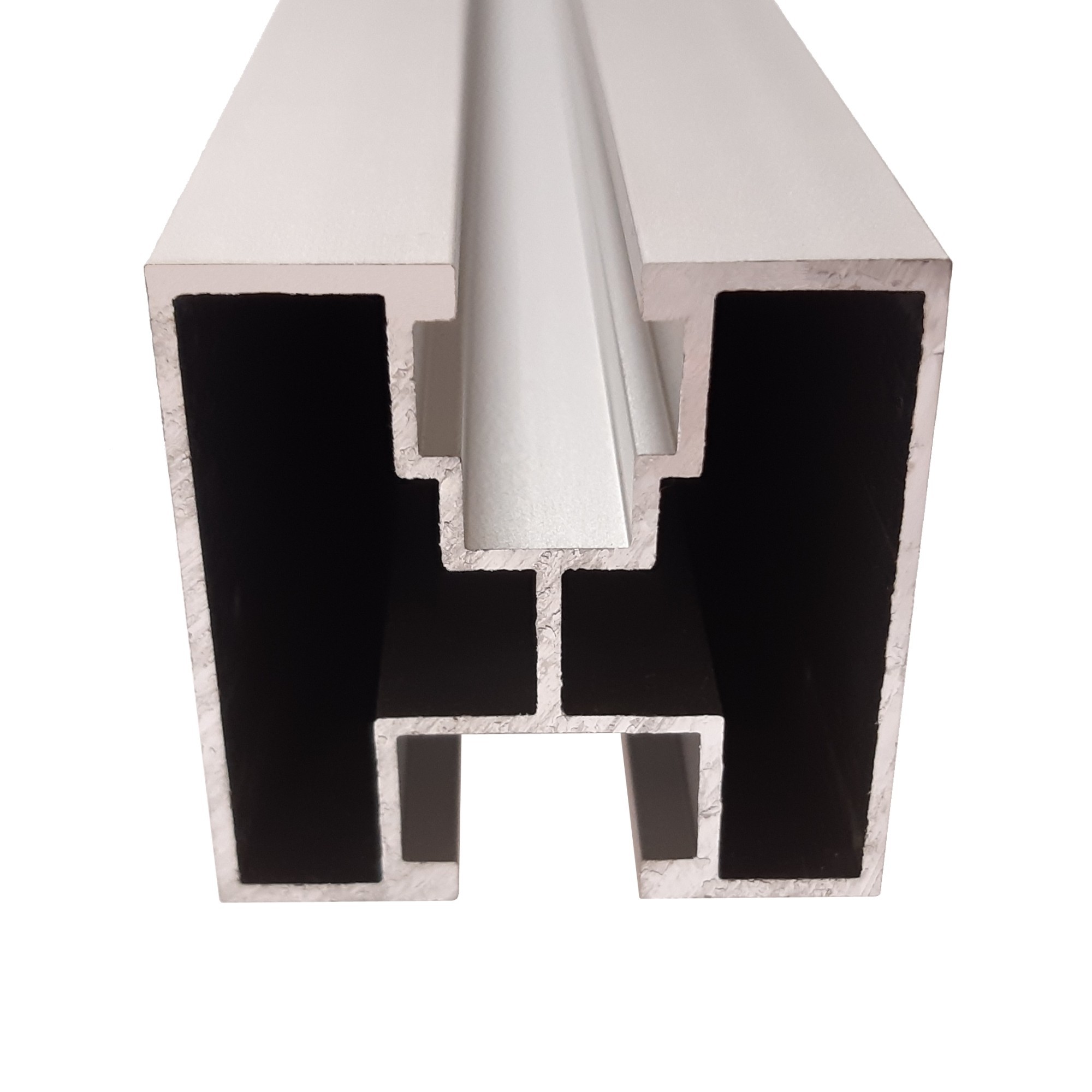

Aluminium profile for mounting photovoltaic modules.
It is fixed using M10 bolts to handles mounted in a pitched roof or to the supporting structure on a flat roof.

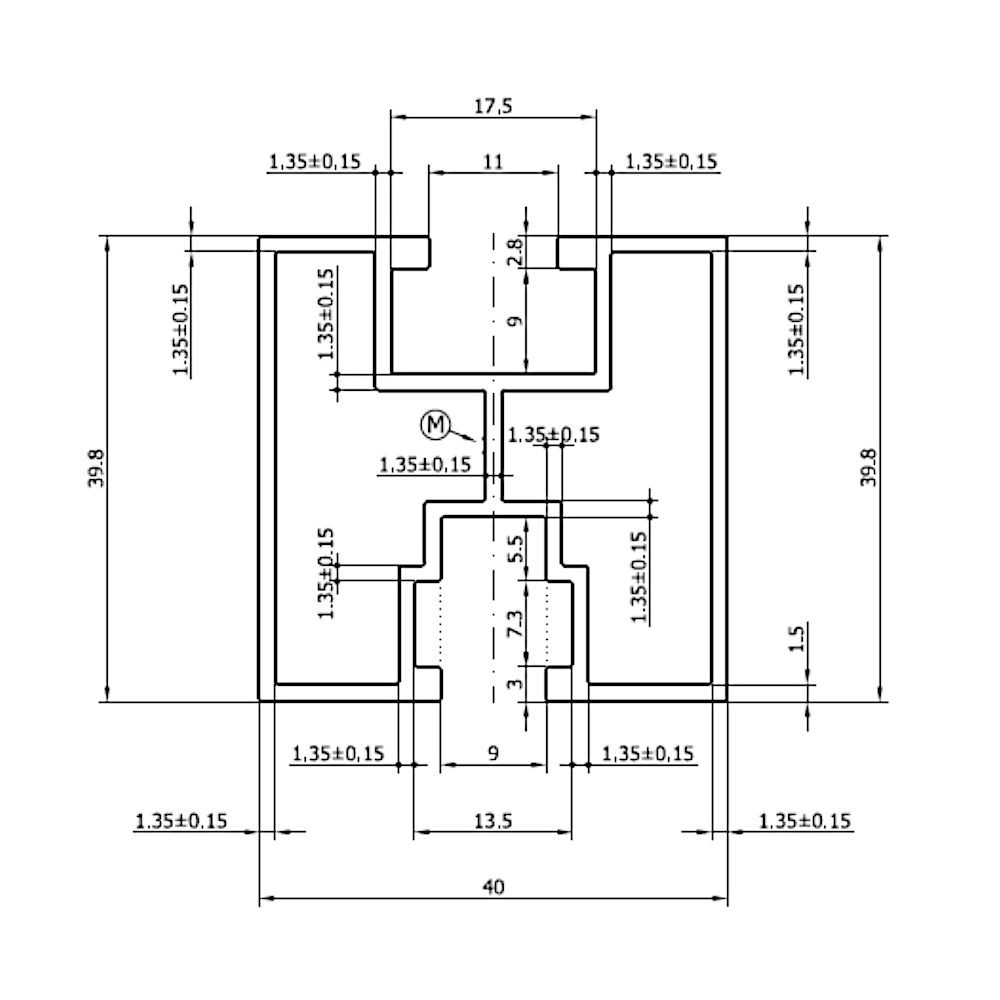

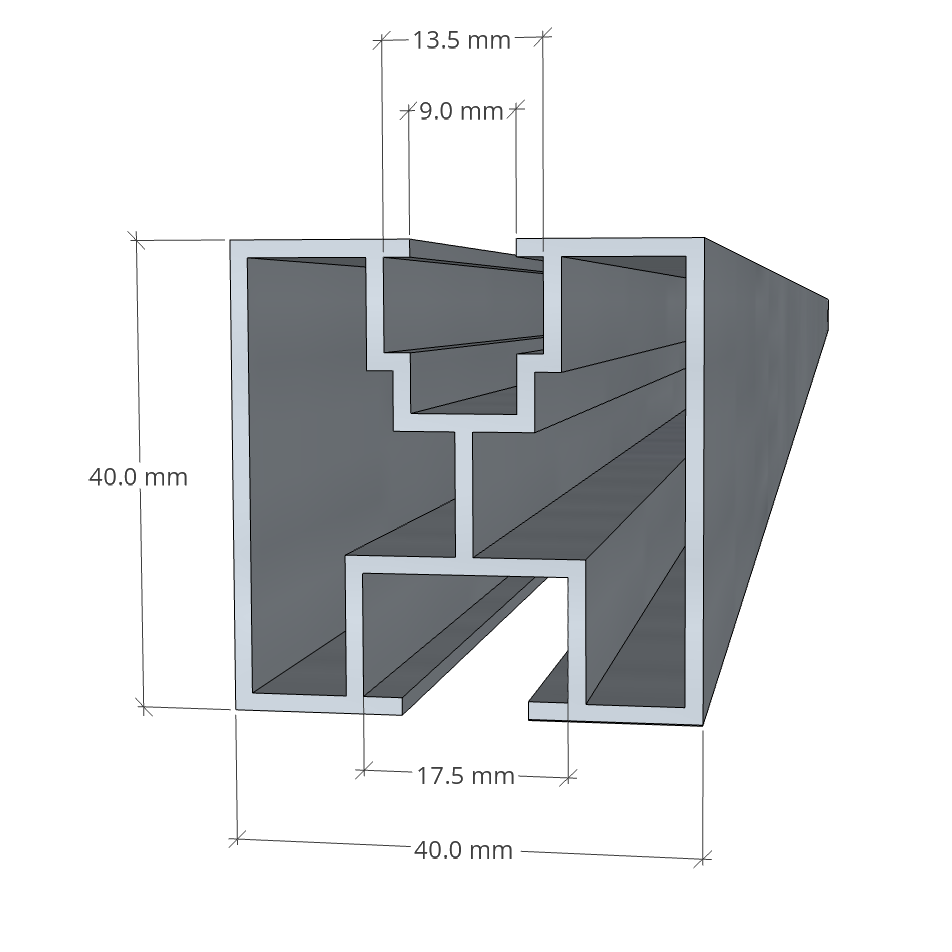

External dimensions: 40 x 40 mm
1 mounting channel for M8 nut
1 mounting channel for M10 bolt
The price quoted refers to a 4,4 m long section.
The profiles can be frontally joined.
NOTE! PERSONAL COLLECTION ONLY!
| Colour: | Silver |
|---|---|
| Dimensions WxHxD [mm]: | 40 x 40 x 4400 |
| Elements: | Rail |
| Dimensions [mm]: | 40.0 x 4400.0 x 40.0 |
| Weight [kg]: | 3.82 |
