PV Mounting elements
Mounting Rail 40 x 40 x 2100 mm
Manufacturer: iONTEC
INDEX: 39666-2.1
Product information "Mounting Rail 40 x 40 x 2100 mm"

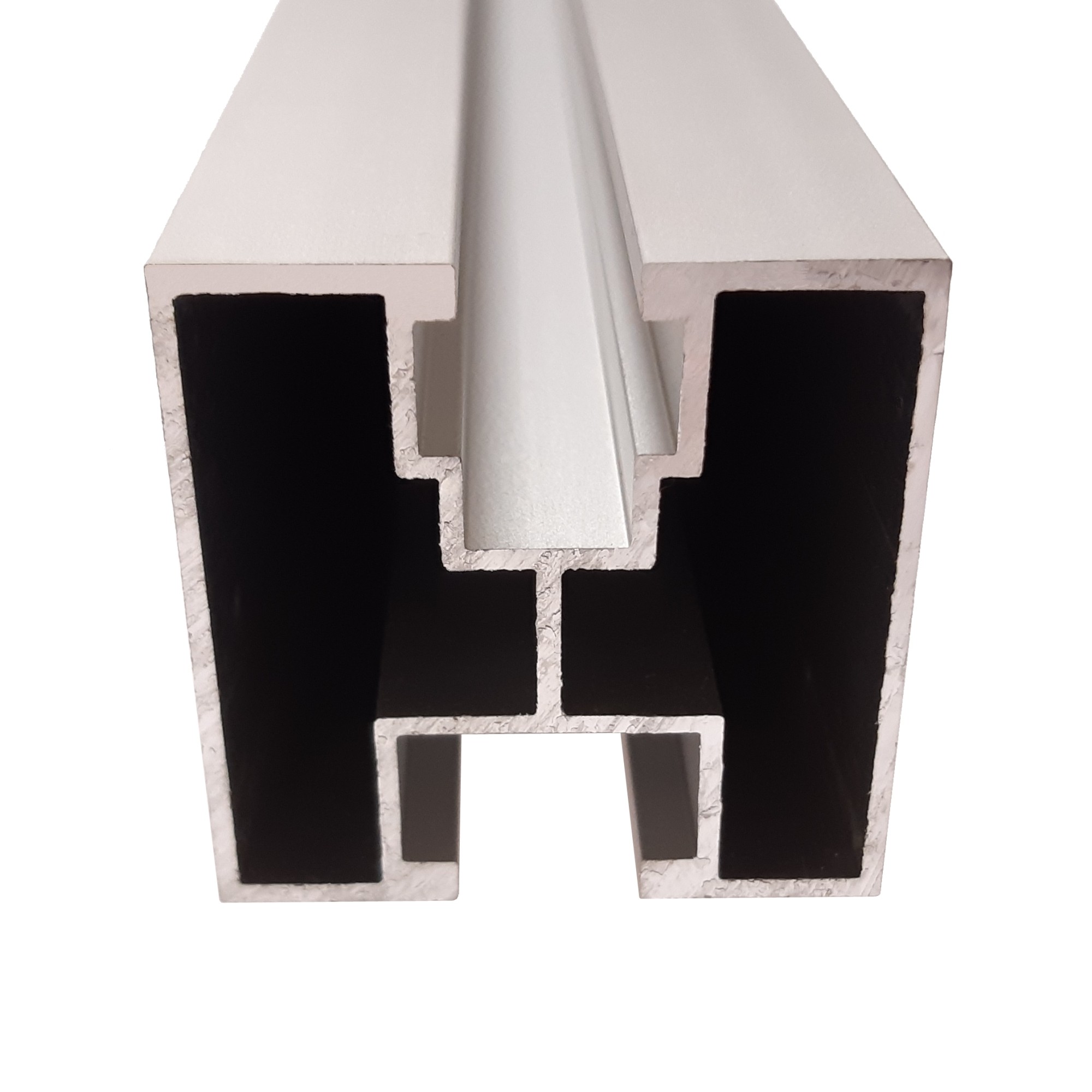

Aluminium profile for mounting photovoltaic modules. It is fixed using M10 bolts to handles mounted in a pitched roof or to the supporting structure on a flat roof.

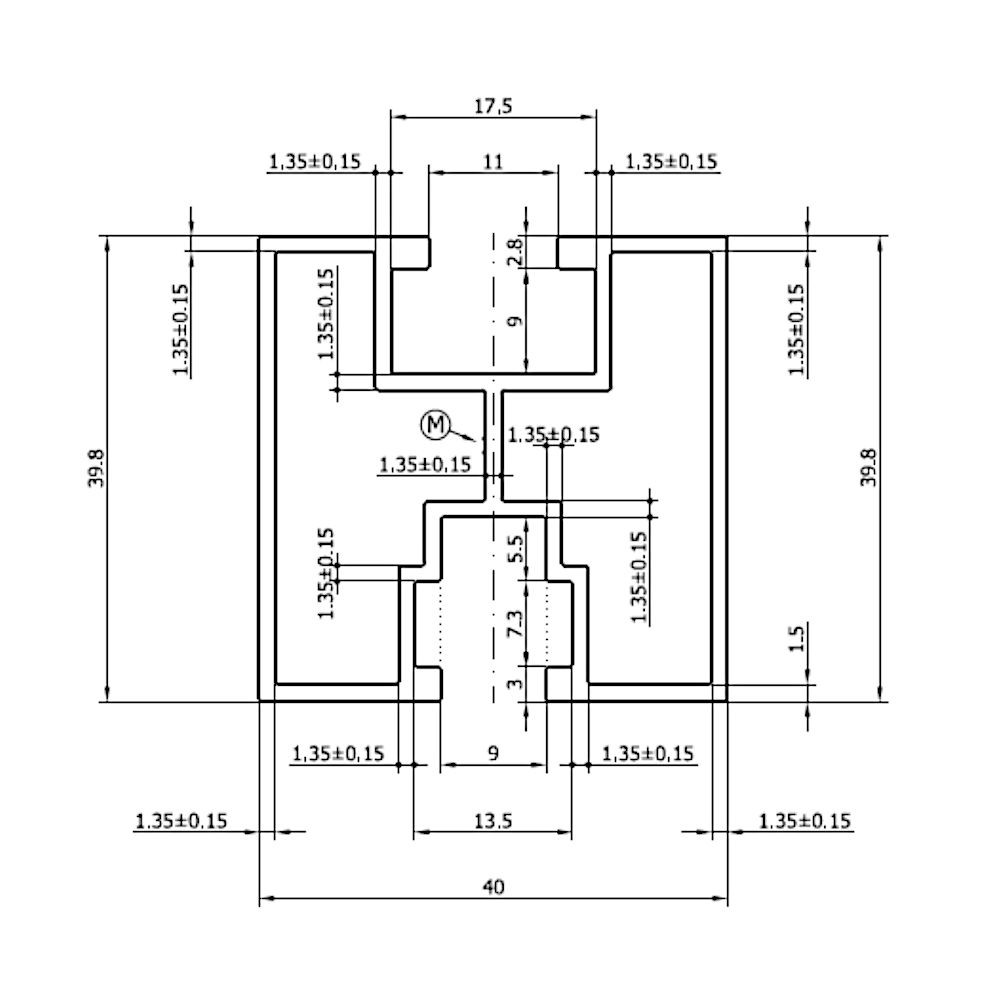

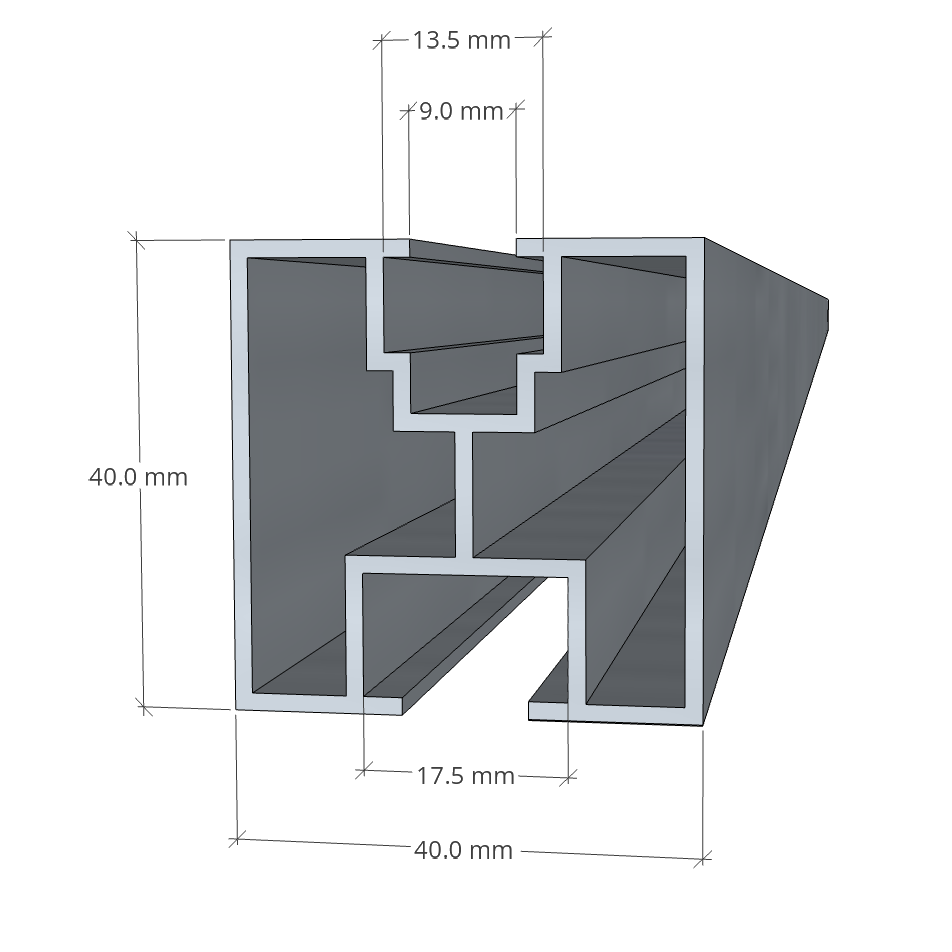

- External dimensions: 40 x 40 mm
- 1 mounting channel for M8 nut
- 1 mounting channel for M10 bolt
The price quoted refers to a 2,1 m long section.
The profiles can be frontally joined.
General features:
| Colour: | Silver |
|---|---|
| Dimensions WxHxD [mm]: | 40 x 40 x 2100 |
| Elements: | Rail |
| Dimensions [mm]: | 40.0 x 2100.0 x 40.0 |
| Weight [kg]: | 1.82 |
